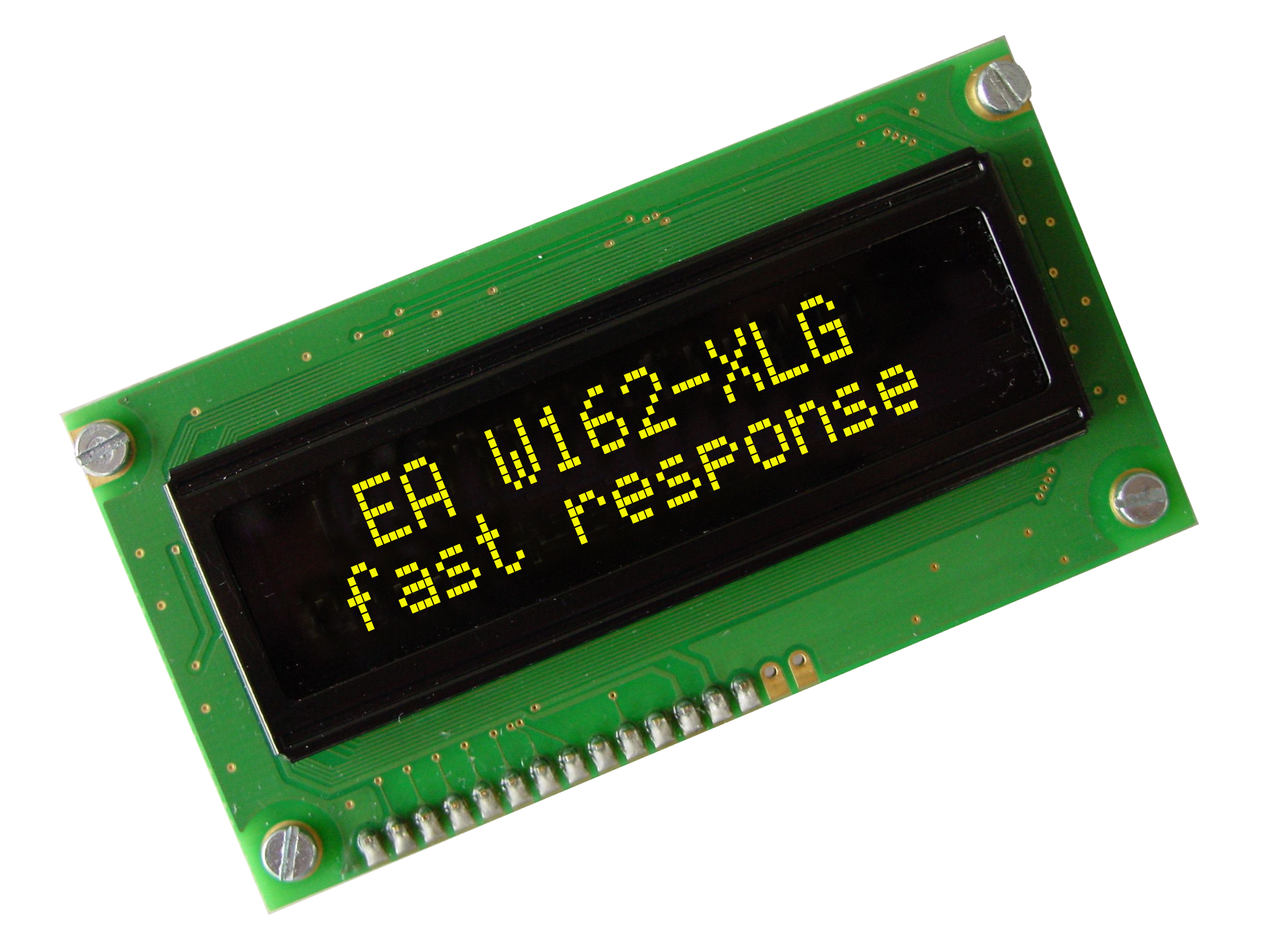

2x16 OLED Character Display with 4/8bit and SPI W162-XLG
£20.76
SKU:
EA W162-XLG
2 left in UK stock! More available (for delivery ~1 week). Buy now or request a quote for larger orders.
COB OLED character display, 2 lines of 16 characters with Yellow/Green dots. 5.55mm character height. Compatible HD44780 controller with 4/8 bit interface and SPI interface. Only single 3.3V or 5.0V logic supply voltage required. Selectable English, Japanese, European or Cyrillic characters sets. For a suitable black bezel order EA 017-2UK.
Click here to download the datasheet for this product.
| Total Width | 84 |
| Total Height | 44 |
| Thickness | 10 |
| Status | In Production |
| Interface |
SPI 4/8 Bit |
| Char X Line | 16 |
| Char Height | 5.55 |
| Display Technology | OLED |
| Pixel Size Y | 0.66 |
| Pixel Size X | 0.56 |
| Operating Temperature | -40 ... +80 °C |
| Controller | HD44780/compatible |
| Fonts | 4 |
| Diagonal Size | 0 |
| Touchscreen | No |
| Lines | 2 |
