EA uniTFT Embedded displays

Designing a product with a colour TFT display and touch-screen does not have to be complex. By using the new EA uniTFT(s) embedded Smart displays the projects get off to a flying start. With integrated graphics controller, extensive graphics functions and USB, I²C and SPI interfaces, the displays are ready to run without additional peripherals.

The uniTFT(s) embedded displays use improved IPS-Panels with AACS technology (All Angle Color Stability). This means contrast and colors are retained even at extreme viewing angles. These displays do not have an inverse tilt effect. High brightness, with typ. 1,000 cd/m² and more, these displays are readable in direct sunlight. All screens have an optically bonded, capacitive touch screens (PCAP). Create within minutes functional layouts with the uniTFTDesigner software. Control your applications sensors and actuator signals directly from the display I/O, serial, I2C or SPI interface. The EA uniTFT(s) embedded displays can also communicate with an external micro processor.

The EA uniTFT displays are available in an enclosure with LAN, Wi-Fi, RS-232, RS-485 or USB interface option. These EA HMI are sealed enclosures and do not offer access to the low voltage I/O, I2C or SPI ports but communicate through LAN, Wi-Fi, RS-232, RS-485 or USB interfaces. For EA HMI models with Modbus see here.

Features

Graphic display with high level graphic functions
Optically bonded PCAP touch-screen
7 Interface options: USB, serial RS-232, I²C and SPI
Touch-screen is controlled from display controller
Free Windows™ uniTFTDesigner development software
Select landscape or portrait mode by command
Onboard memory for fonts, pictures, animations and macros

High bright Sunlight readable
Alpha-blending, vector graphics
EA uniTFTs have 8 digital I/O and are expandable
Onboard Real-Time clock from size 3.5" to 10.1"
4 analogue inputs, 1 PWM output
EA uniTFT have 16 digital I/O and are expandable
EA uniTFT: Video camera input, RTClock, SD card

Click here to view the hardware manual for uniTFTs Size 1.5" to 4.3"- External link to DISPLAY VISIONS website.

Click here to view the commands manual for uniTFTs - External link to DISPLAY VISIONS website.

Click here to view the hardware manual for uniTFTm070 Size 7.0" - External link to DISPLAY VISIONS website.

Click here to view the commands manual for uniTFTm070 - External link to DISPLAY VISIONS website.

Click here to view the hardware manual for uniTFT Size 5.0" to 10.1" - External link to DISPLAY VISIONS website.

Click here to view the commands manual for uniTFT - External link to DISPLAY VISIONS website.

Display sizes for EA uniTFT and EA HMI (Small protocol)

Partnumber	Resolution	Module size	Touch & Interface	Enclosure
EA uniTFTs015-ATC	1.5" 240x240	44x44 mm	PCAP/USB/Serial/I²C/SPI	No
EA uniTFTs020-ATC	2.0" 320x240	65x43 mm	PCAP/USB/Serial/I²C/SPI	No
EA uniTFTs028-ATC	2.8" 320x240	84x58 mm	PCAP/USB/Serial/I²C/SPI	No
EA uniTFTs035-ATC	3.5" 480x320	100x65 mm	PCAP/USB/Serial/I²C/SPI	No
EA uniTFTs043-ATC	4.3" 480x272	114x84 mm	PCAP/USB/Serial/I²C/SPI	No
EA uniTFT050-ATC	5.0" 800x480	139x96 mm	None/Resist/PCAP	No
EA uniTFTm070-ATC	7.0" 1024x600	190x125 mm	PCAP/USB/Serial/I²C/SPI	No
EA uniTFTm070-BTC	7.0" 1024x600	190x125 mm	PCAP/USB/Serial/I²C/SPI	No
EA uniTFT070-ATC	7.0" 1024x600	190x125 mm	PCAP/USB/Serial/I²C/SPI	No
EA uniTFT101-ATC	10.1 1280x800	260x186 mm	PCAP/USB/Serial/I²C/SPI	No
EA HMI028WU-32ATCS	2.8" 320x240	84x58 mm	PCAP/WiFi,RS485	Yes
EA HMI028LU-32ATCS	2.8" 320x240	84x58 mm	PCAP/LAN/WiFI/RS485	Yes

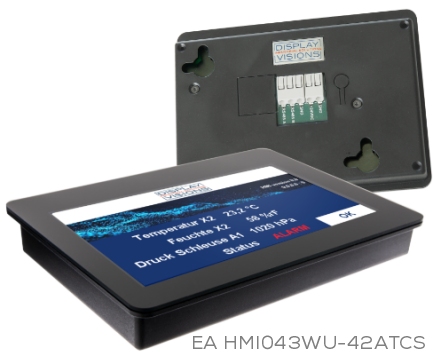

EA HMI043WU-42ATCS	4.3" 480x272	114x84 mm	PCAP/WiFi/RS485	Yes
EA HMI043LU-42ATCS	4.3" 480x272	114x84 mm	PCAP/LAN/WiFi/RS485	Yes
EA HMI043RU-42ATCS	4.3" 480x272	114x84 mm	PCAP/RS232	Yes
EA HMI070WU-16ATCS	7.0" 1024x600	190x125 mm	PCAP/WiFi/RS485/USB	Yes
EA HMI070LU-16ATCS	7.0" 1024x600	190x125 mm	PCAP/LAN/WiFi/RS485	Yes
EA HMI070RU-16ATCS	7.0" 1024x600	190x125 mm	PCAP/RS232/USB	Yes
EA HMI101WU-18ATCS	10.1" 1280x800	260x186 mm	PCAP/WiFi/RS485/USB	Yes
EA HMI101LU-18ATCS	10.1" 1280x800	260x186 mm	PCAP/WiFi/RS485/USB	Yes
EA HMI101RU-18ATCS	10.1" 1280x800	260x186 mm	PCAP/RS232/USB	Yes

Evaluation Kits for the EA uniTFTs 2.0", 2.8", 3.5" and, 4.3"

To get started with the EA uniTFTs embedded display we have put together various demoboard with the EA uniTFT028-ATC display. Simply supply power to the USB port and the 2.8" display works straight out of the box. The EA DEMOPACK contains everything required to start the development.

link to EA DEMOPACK-CLIMA with CO2, temperature and humidity sensor, USB supply

link to EA DEMOPACK-CONNI with USB, RS232, RS485, SPI, I2C level shifter, 5-30V supply

link to EA DEMOPACK-RGBANA with RGB LED via SPI and Analogue input, USB supply

link to EA DEMOPACK-RELAY with 4 inputs up to 30V, current sensor, Relay, 5-30V supply

link to EA DEMOPACK-WiFiBT with USB, WiFi and Bluetooth (ESP32 processor) + USB

Evaluation Boards for the EA uniTFT 5.0", 7.0" and 10.1"

The QUICK-uniTFT box contains everything to get started with the larger EA uniTFT smart displays. The box includes the EA uniTFT display with PCAP touch, breakout board for pin 1-26 with speaker and PSU connector, USB cable and the uniTFTDesigner software.

link to EA QUICK-uniTFT050 product and datasheet

link to EA QUICK-uniTFT070 product and datasheet

link to EA QUICK-uniTFT101 product and datasheet

Download uniTFTDesigner software

Download the FREE uniTFTDesigner software specially designed to program the EA uniTFT(s) smart displays. The software is packed with easy to follow examples that run inside the desktop display simulator even without connecting any hardware.

Drag and drop software IDE
Create gauge instruments and graphs
Display simulator and debugger
Create screen layouts and macro functions
Download data via USB to display memory
Many program examples included
Intelligent code completion and help function

Learn with the uniTFT Academy

To make the experience with the uniTFTDesigner software as smooth as possible many examples are available from within the software. More educational video's are available on the Display Visions YouTube channel.
