1.5" EA uniTFTs015-ATC multifunctional IPS Graphic Display + PCAP touch
EA uniTFTs015-ATC a Smart 1.5" IPS TFT colour object programmable display with 240x240 resolution, high brightness LED backlight and PCAP touch-screen. Manufactured by DISPLAY VISISONS. The uniTFTs displays are easy programmable with the free uniTFTDesigner software. Simply connect the onboard USB port and download your project including pictures, fonts, I/O settings, calculations and script into the display. In addition to the USB interface communication via RS-232 serial, I²C and SPI interface is possible. Fitted with 40 pin ZIF connector (bottom contact).
• AACS (all angle color stability) and IPS-display for unlimited viewing angle
• High bright LED backlight over 1000cd/m²
• Object-oriented screen layout
• Alpha-blending
• ASCII and Unicode Fonts
• Serial interfaces: USB, RS232, SPI, I²CAnimate and move objects
• 8 digital I/Os for connection to sensors and actuators. (expandable to 136)
• 4 analog inputs with 12 bit resolution

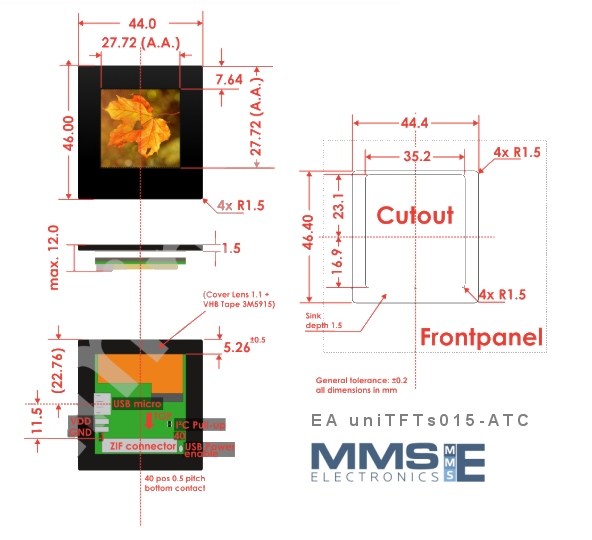

Total Width | 44 |
View area width | 27.72 |
View area height | 27.72 |
Thickness | 12 |
Status | In Production |
Interface |
SPI I2C USB |
Backlight Colour | white |
Voltage Supply | 3.3V..5V |
Background Colour | RGB |
Current Backlight Off (mA) | 76 |
Current Backlight On (mA) | 105 |
View Angle | unlimited |
Display Technology | TN-IPS |
Pixel Size Y | 0.1155 |
Pixel Size X | 0.1155 |
Operating Temperature | -20 ... +70 °C |
Controller | EA |
Active | Y |
Fonts | ASCII and Unicode |
Diagonal Size | 1.5 |
Touchscreen | Y |
Touch Type | PCAP |
Pixel X | 320 |
Pixel Y | 240 |
Analogue Inputs | 4 |
Inputs/Outputs | 8 |
High Brightness | Y |
