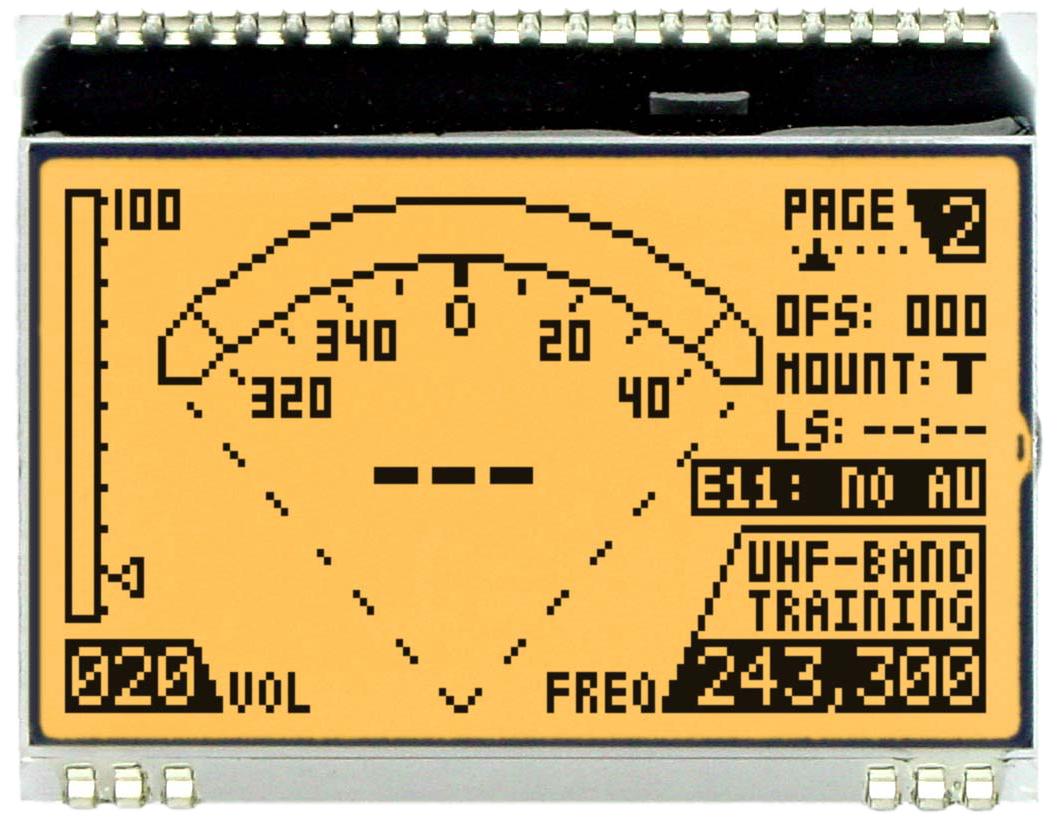

128x64 DOG Graphic Display EA DOGM128W-6
£17.86
SKU:
EA DOGM128W-6
29 left in UK stock! More available (for delivery ~1 week). Buy now or request a quote for larger orders.
EA DOGM128W-6 DOG series graphic display with 128x64 dots. Extremely flat COG display in FSTN black-white. 3.3 V single supply. Pins for direct mounting (2.54 mm pitch). Controller ST7565, SPI interface. Also available in various colours and designs. Backlight needs to be ordered separately. We recommend backlight for this module but text is also readable without a backlight.
Click | Total Width | 55 |
| Total Height | 46 |
| View area width | 51 |
| View area height | 31 |
| Thickness | 2 |
| Status | In Production |
| Interface | SPI |
| Backlight Colour | not defined |
| Background Colour | white |
| Current Backlight Off (mA) | 0.27 |
| View Angle | 6:00 / bottom view |
| Display Technology | FSTN |
| Pixel Size Y | 0.42 |
| Pixel Size X | 0.36 |
| Operating Temperature | -20 ... +70 °C |
| Controller | ST7565 |
| Active | 1 |
| Fonts | 0 |
| Diagonal Size | 2.3 |
| Touch Type | available |
| Pixel X | 64 |
| Pixel Y | 128 |
