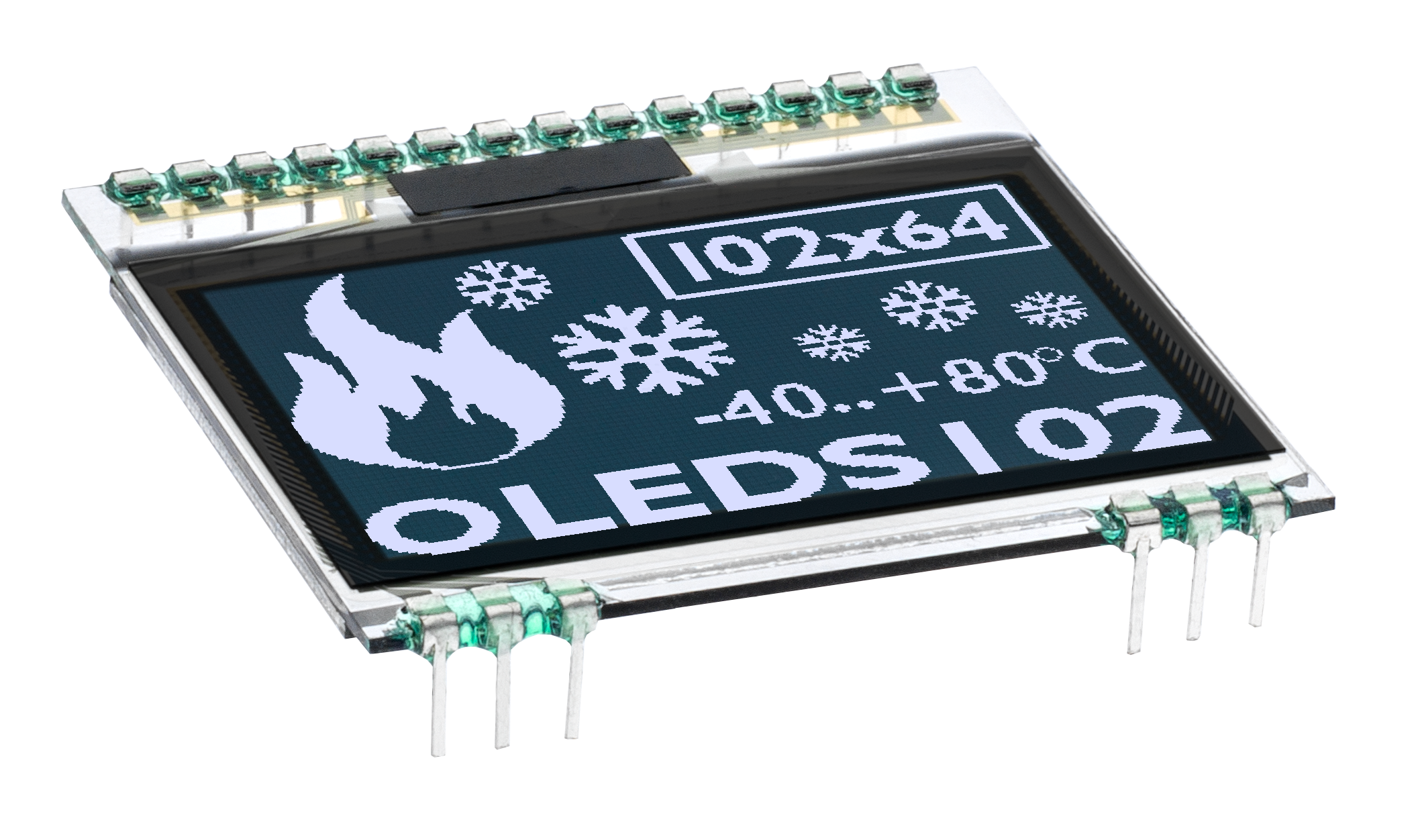

102x64 COG OLED 1.7" Graphic Display with I2C, SPI EA OLEDS102-6LWA

102x64 COG OLED 1.7" Graphic Display with I2C, SPI EA OLEDS102-6LWA

£20.98
SKU: EA OLEDS102-6LWA
This item can be backordered
For quantity 10+

1.7" Graphic OLED display with 102x64 resolution, Yellow dots and deep black background. Extremely flat 2.1mm COG display. The display connection pins on a 2.54mm pitch can be soldered directly into the PCB or plugged into a connector. The OLED displays are bright and offer excellent readability with high contrast and wide viewing angle of nearly 180°. Wide temperature range from -40 up to +80°C with fast display function (typ. 10µs even at icy -40°C). Interface is both SPI and I2C. For touch-screen function add the 4 wire analogue touch-screen EA TOUCH102-1 (only fits -6GGA version) or a PCAP touch EA TOUCH102-17C1. Download the free of charge OLED-Simulator and show the display functions on your desktop. Or order the EA 9781-1USB demo board, connect to USB and immediately show information on this display without any programming.

Click here and here to download the datasheets for this product.

Total Width 39
Total Height 39
View area width 36
View area height 25
Thickness 2.1
Status In production
Interface SPI
I2C
Background Colour white
View Angle no restriction
Display Technology OLED
Pixel Size Y 0.325
Pixel Size X 0.305
Operating Temperature -40 ... +80 °C
Controller SSD1306B
Diagonal Size 1.7
Touchscreen No
Pixel X 64
Pixel Y 102
Current (mA) 30
