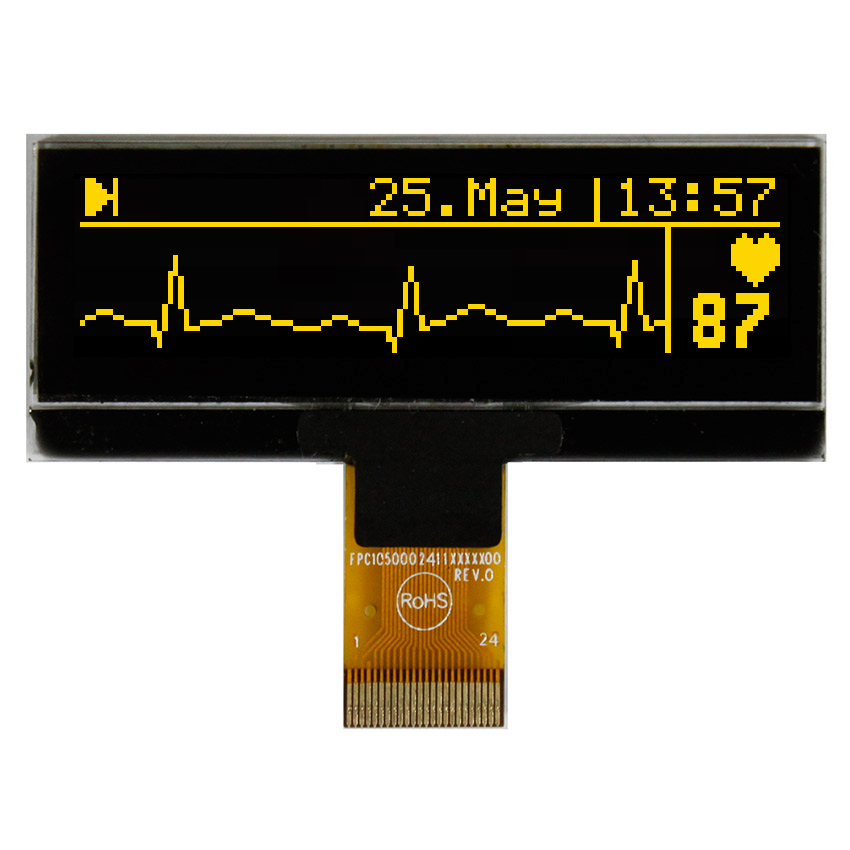

EA W128032-XALG 128x32 mini OLED 2.2" Graphic Display with I2C, SPI

EA W128032-XALG 128x32 mini OLED 2.2" Graphic Display with I2C, SPI

£19.83
SKU: EA W128032-XALG
10 left in stock
For quantity 10+

EA W128032-XALG 2.2" Mini Graphic OLED with 128x32 resolution, Yellow dots. Extreme wide temperature range and fast response time (typ. 10µs even at -40°C). The display provides a wide viewing angle with nearly 180°. Connection is easyly done via integrated flex cable (24 pins). As an Interface the display provides SPI, I²C and parallel 8-bit. Download the free of charge OLED-Simulator and show the display functions on your desktop. Or order the EA 9781-1USB demo board, connect to USB and immediately show information on this display without any programming. Download the free of charge OLED-Simulator and show the display functions on your desktop. Or order the EA 9781-1USB demo board, connect to USB and immediately show information on this display without any programming.

Click here and here to download the datasheets for this product.

Total Width 62
Total Height 24
View area width 57
View area height 15.1
Thickness 2.4
Status In production
Interface SPI
I2C
Background Colour yellow/green
View Angle no restriction
Display Technology OLED
Pixel Size Y 0.388
Pixel Size X 0.408
Operating Temperature -40 ... +80 °C
Controller SSD1305
Diagonal Size 2.2
Touchscreen No
Pixel X 32
Pixel Y 128
Current (mA) 24
