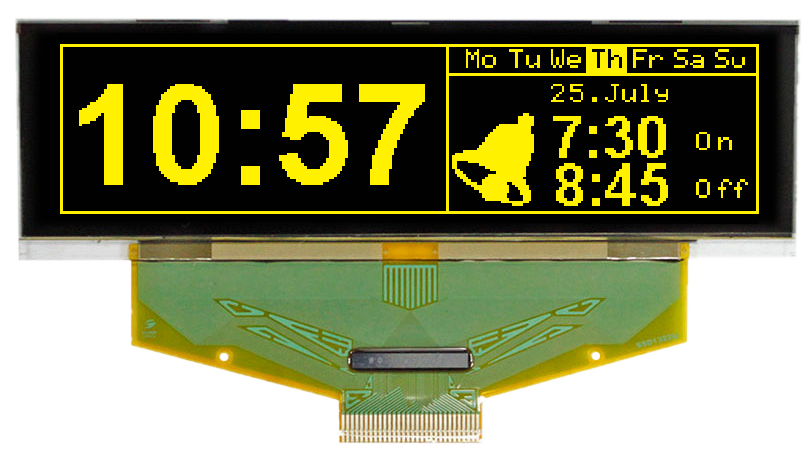

256x64 OLED 3.1" Graphic Display with SPI, 8bit W256064-XALG
3.1" Graphic OLED display with 256x64 resolution, Yellow dots. Extreme wide temperature range and fast response time (typ. 10µs even at -40°C). The display provides a wide viewing angle with nearly 180°. Connection is easyly done via flex cable and ZIFF connection.As an Interface the display provides SPI and parallel 8-bit. Download the free of charge OLED-Simulator and show the display functions on your desktop. Or order the EA 9781-1USB demo board, connect to USB and immediately show information on this display without any programming. Download the free of charge OLED-Simulator and show the display functions on your desktop. Or order the EA 9781-1USB demo board, connect to USB and immediately show information on this display without any programming.
Click | Total Width | 88 |
| Total Height | 27.8 |
| View area width | 78.8 |
| View area height | 21.8 |
| Thickness | 2 |
| Status | In production |
| Interface | SPI |
| Background Colour | yellow/green |
| View Angle | no restriction |
| Display Technology | OLED |
| Pixel Size Y | 0.278 |
| Pixel Size X | 0.278 |
| Operating Temperature | -40 ... +80 °C |
| Controller | SSD1322 |
| Diagonal Size | 3.1 |
| Touchscreen | No |
| Pixel X | 64 |
| Pixel Y | 256 |
| Current (mA) | 100 |
