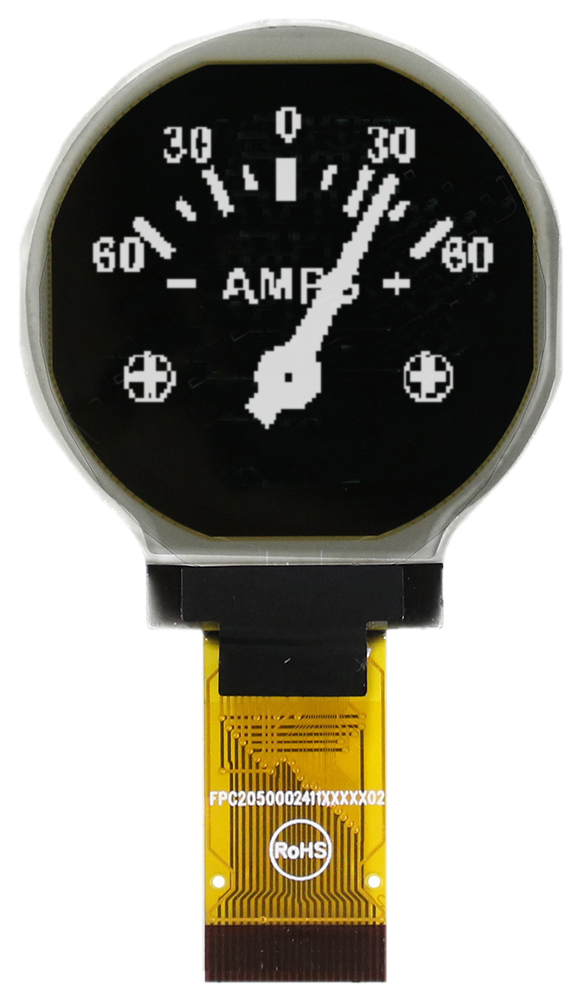

Round OLED 1.2" Graphic Display with I?C, SPI

Round OLED 1.2" Graphic Display with I?C, SPI

£29.74
SKU: EA W128128-XRLW
7 left in stock
For quantity 10+

1.2" Round OLED display with 128x128 resolution, White dots with diameter 30mm (active area). Extreme wide temperature range and fast response time (typ. 10µs even at -40°C). The display provides a wide viewing angle with nearly 180°. Connection is easyly done via integrated 24-pin flex cable. As an Interface the display provides SPI, I²C and parallel 8-bit. Download the free of charge OLED-Simulator and show the display functions on your desktop. Or order the EA 9781-1USB demo board, connect to USB and immediately show information on this display without any programming. Download the free of charge OLED-Simulator and show the display functions on your desktop. Or order the EA 9781-1USB demo board, connect to USB and immediately show information on this display without any programming.

Click here and here to download the datasheets for this product.

Total Width 36.9
Total Height 41.2
View area width 36
View area height 36
Thickness 2.1
Status In production
Interface SPI
I2C
Background Colour white
View Angle no restriction
Display Technology OLED
Pixel Size Y 0.21
Pixel Size X 0.21
Operating Temperature -40 ... +80 °C
Controller SSD1327
Diagonal Size 1.2
Touchscreen No
Pixel X 128
Pixel Y 128
Current (mA) 24
