Evaluation KIT EA EVALEDIP160W with EA eDIP128W-6LWTP

Evaluation KIT EA EVALEDIP160W with EA eDIP128W-6LWTP

£160.28
SKU: EA EVALEDIP160W
1 left in stock
For quantity 10+

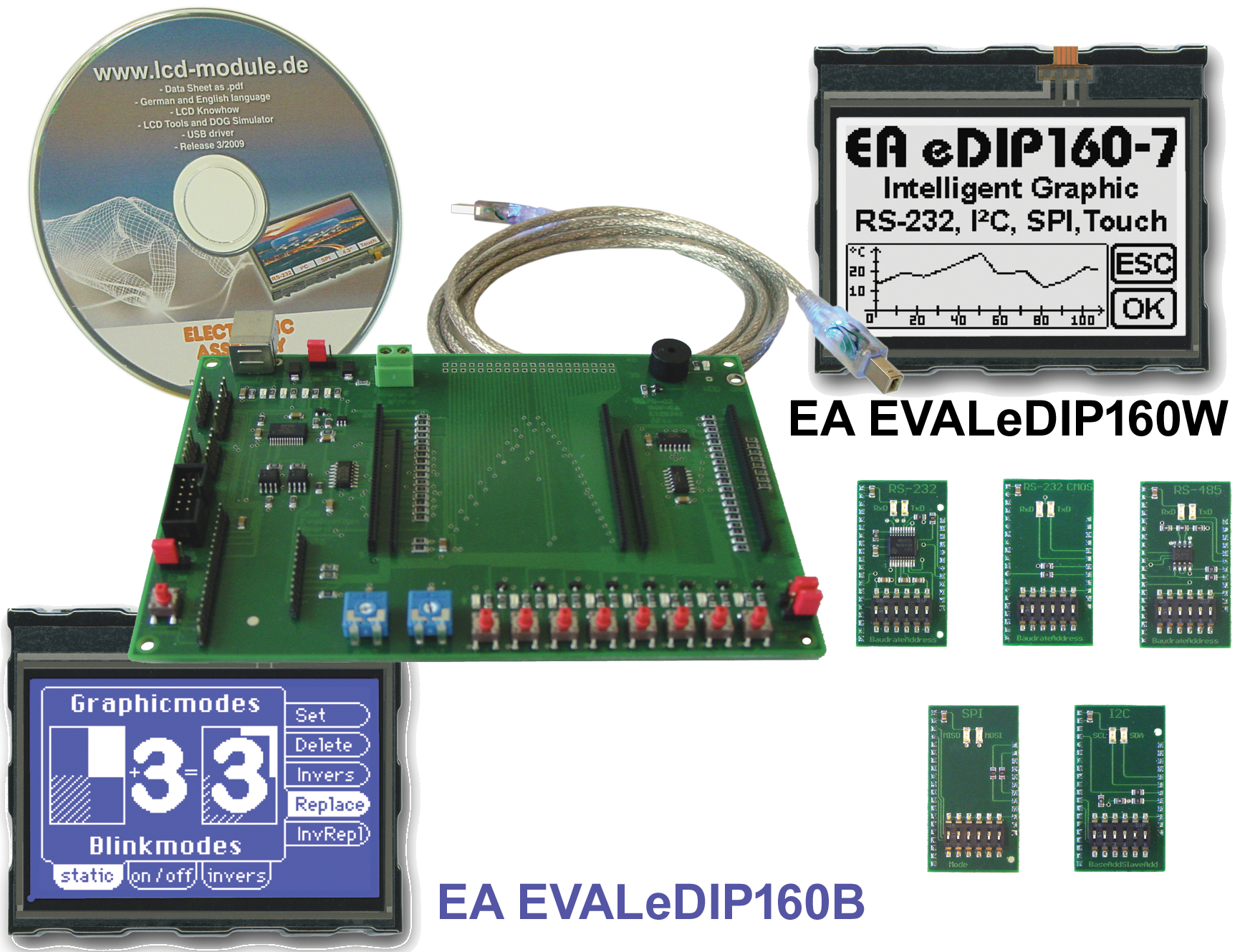

EVAL-Kit incl. display EA eDIP160W-6LWTP with 160x104 pixel. In black&white with integrated touchpanel. Easy connection to PC via USB interface. Incl. software for Windows. Display plugged into socket with pitch 2.54mm. Display interface is RS-232 (CMOS), SPI or I²C bus. Incl. adaptor boards for RS-485 and RS-232. Character set and graphic functions are built-in (display). With FLASH PROM for individual pictures, additional character set, text and whole screens. Macro examples are included.

Click here and here to download the datasheets for this product.

Total Width 159
Total Height 109
View area width 74
View area height 45.9
Status In production
Interface SPI
I2C
Backlight Colour white
Background Colour white
Current Backlight Off (mA) 15
Current Backlight On (mA) 125
View Angle 6:00 / bottom view
Display Technology FSTN
Pixel Size Y 0.4
Pixel Size X 0.42
Operating Temperature -20 ... +70 °C
Controller EA
Active 1
Fonts 8
Diagonal Size 3.3
Touchscreen Yes
Touch Type analog resisitive
Pixel X 104
Pixel Y 160
Analogue Inputs 0
Inputs/Outputs 8
