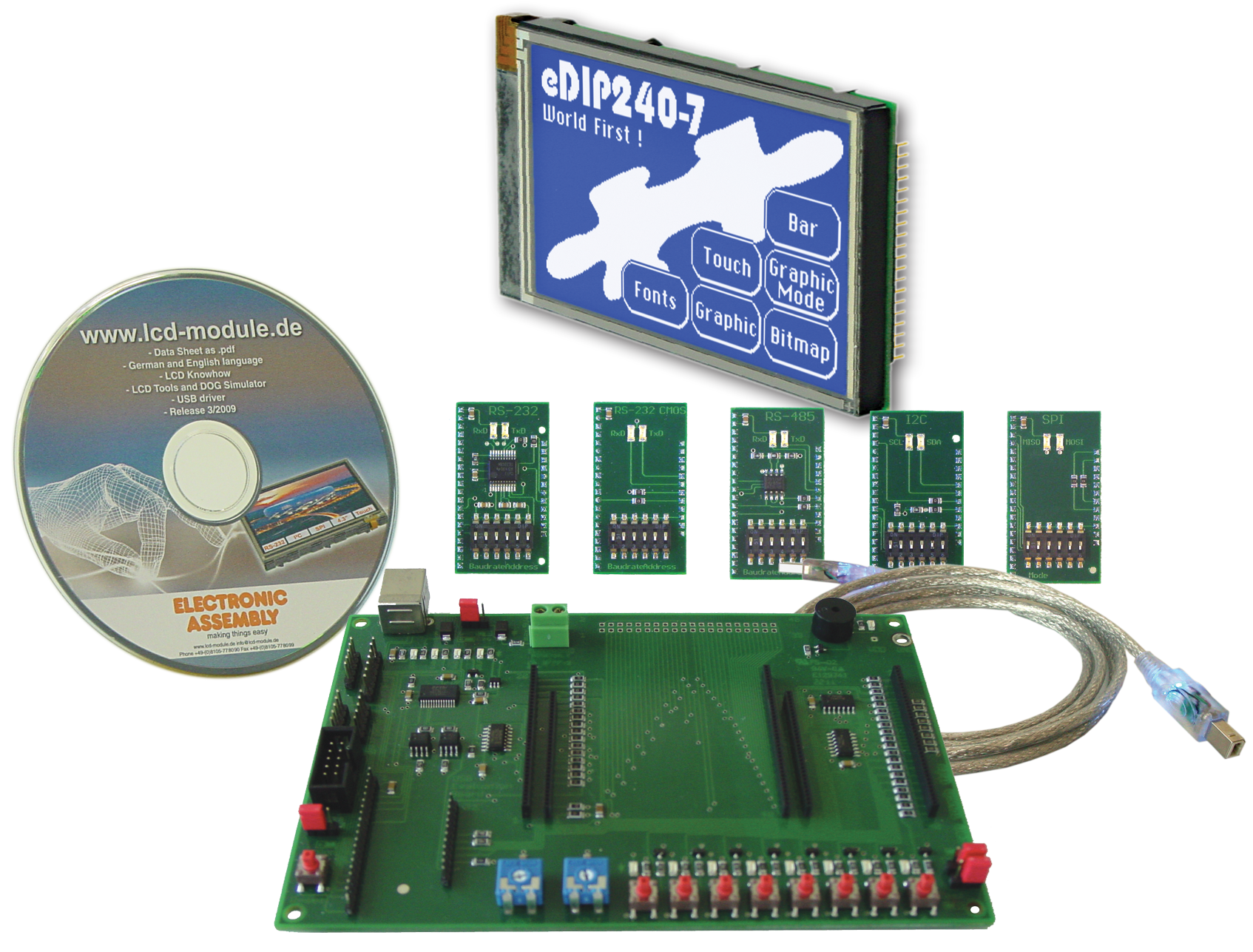

Evaluation KIT EA EVALEDIP240B with EA eDIP240B-7LWTP

Evaluation KIT EA EVALEDIP240B with EA eDIP240B-7LWTP

1 left in stock
For quantity 10+

EVAL-Kit incl. display EA eDIP240B-7LWTP with 240x128 pixel. In blue-white with integrated touchpanel. Easy connection to PC via USB interface. Incl. software for Windows. Display plugged into socket with pitch 2.54mm. Display interface is RS-232 (CMOS), SPI or I²C bus. Incl. adaptor boards for RS-485 and RS-232. Character set and graphic functions are built-in (display). With FLASH PROM for individual pictures, additional character set, text and whole screens. Macro examples are included.

Click here and here to download the datasheets for this product.

Total Width 159
Total Height 109
View area width 96
View area height 60.4
Status In production
Interface SPI
Backlight Colour white
Voltage Supply 5.0V
Background Colour blue
Current Backlight Off (mA) 75
Current Backlight On (mA) 210
View Angle 6:00 / bottom view
Display Technology STN blue
Pixel Size Y 0.41
Pixel Size X 0.35
Operating Temperature -20 ... +70 °C
Controller EA
Active 1
Fonts 8
Diagonal Size 4.2
Touchscreen Yes
Touch Type analog resisitive
Pixel X 128
Pixel Y 240
Analogue Inputs 0
Inputs/Outputs 7
