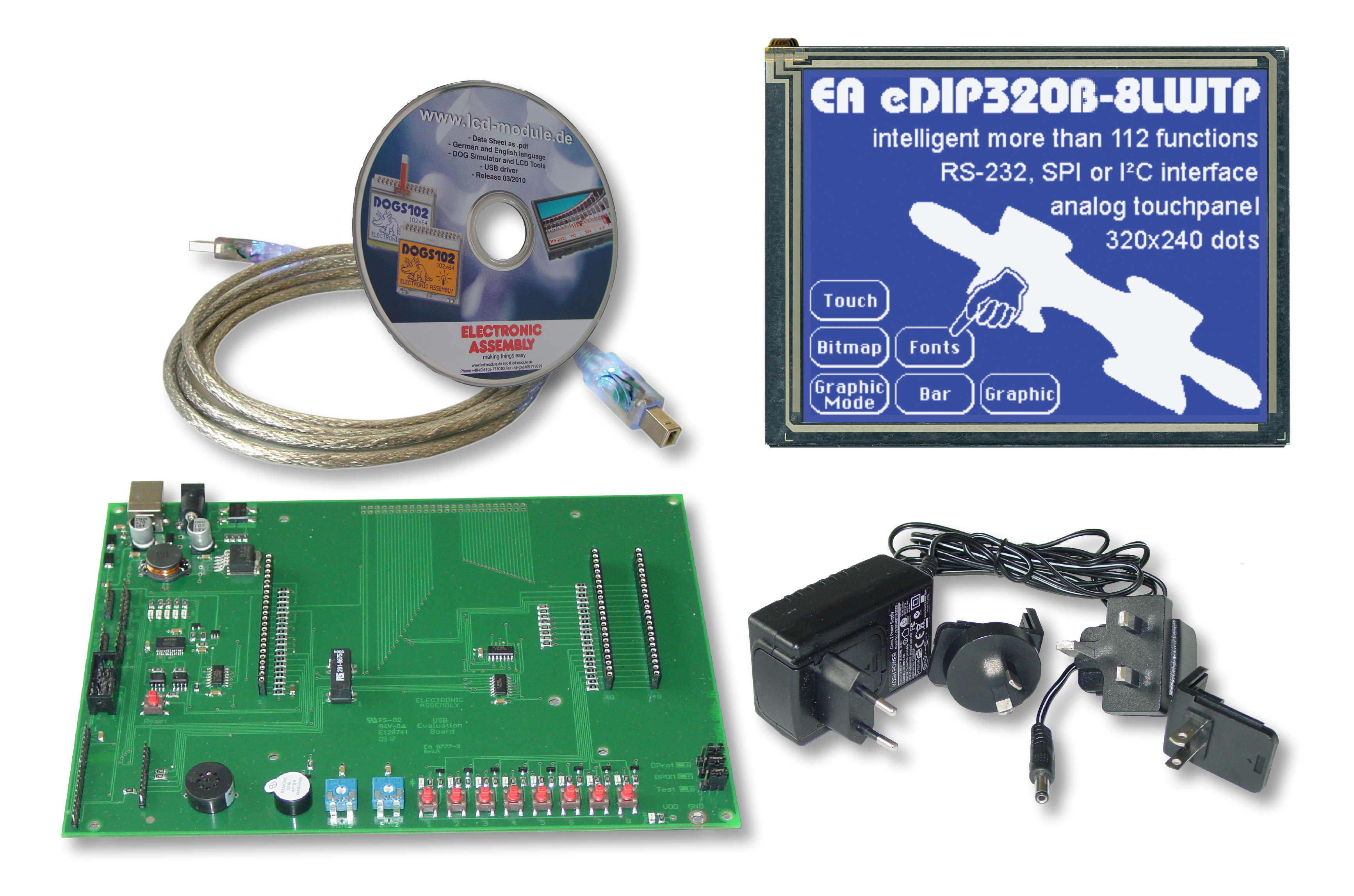

Evaluation KIT EA EVALEDIP320B with EA eDIP320B-8LWTP

Evaluation KIT EA EVALEDIP320B with EA eDIP320B-8LWTP

This item can be backordered
For quantity 10+

EVAL-Kit incl. display EA eDIP320B-8LWTP with 320x240 pixel. In blue-white with integrated touchpanel. Easy connection to PC via USB interface. Incl. software for Windows. Display plugged into socket with pitch 2.54mm. Display interface is RS-232 (CMOS), SPI or I²C bus. Incl. adaptor boards for RS-485 and RS-232. Character set and graphic functions are built-in (display). With FLASH PROM for individual pictures, additional character set, text and whole screens. Macro examples are included.

Click here and here to download the datasheets for this product.

Total Width 210
Total Height 154
View area width 121
View area height 92.6
Status In production
Interface SPI
Backlight Colour white
Voltage Supply 5.0V
Background Colour blue
Current Backlight Off (mA) 50
Current Backlight On (mA) 230
View Angle 6:00 / bottom view
Display Technology STN blue
Pixel Size Y 0.34
Pixel Size X 0.34
Operating Temperature -20 ... +70 °C
Controller EA
Active 1
Fonts 8
Diagonal Size 5.7
Touchscreen Yes
Touch Type analog resisitive
Pixel X 240
Pixel Y 320
Analogue Inputs 0
Inputs/Outputs 8
