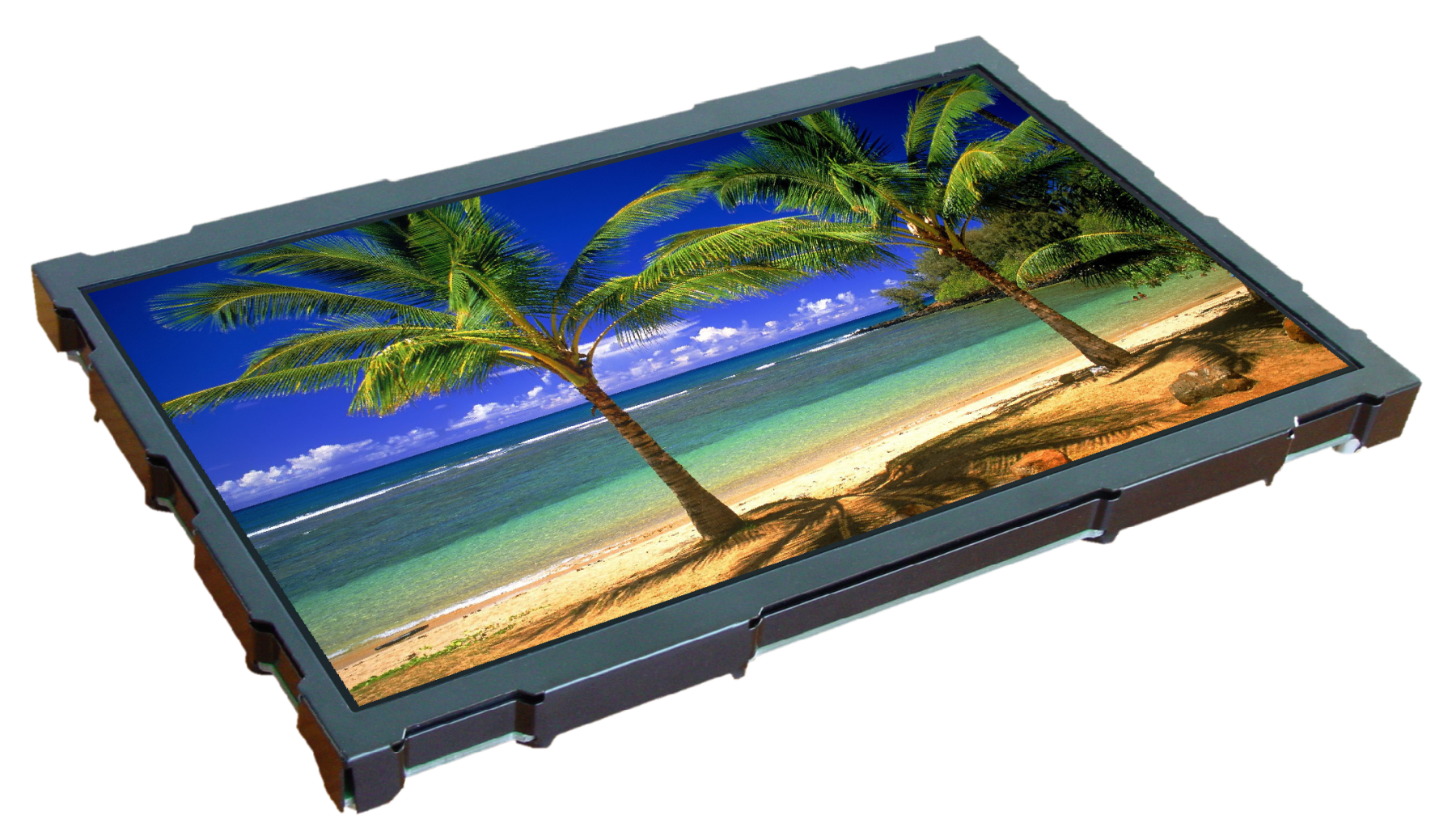

10.1" EA uniTFT101-A IPS multifunctional Graphic Display
Embedded Smart 10.1" IPS TFT colour object programmable display with 1280x800 resolution, high brightness LED backlight. The uniTFT displays are easy programmable with the free uniTFTDesigner software. Simply connect the onboard USB port and download your project including pictures, fonts, I/O settings, calculations and script into the display. 7 serial Interfaces: USB, 2 x RS232, 2 x SPI, 2 x I²C.
• AACS (all angle color stability) and IPS-display for unlimited viewing angle
• High bright LED backlight 1000 cd/m²
• Object-oriented screen layout
• Alpha-blending
• ASCII and Unicode Fonts
• Serial interfaces: USB, RS232, SPI, I²C
• 16 digital I/Os for connection to sensors and actuators. (expandable to 125)
• 4 analog inputs with 12 bit resolution
• 1 analogue video input
• Time (RTC), battery-buffered
• Onboard Flash-memory for pictures, fonts, menus and log-files + SD card
Total Width | 235 |
View area width | 219.5 |
View area height | 138 |
Thickness | 17.1 |
Status | In Production |
Interface |
SPI I2C USB |
Backlight Colour | white |
Voltage Supply | 3.3V |
Background Colour | RGB |
Current Backlight Off (mA) | 450 |
Current Backlight On (mA) | 1800 |
View Angle | unlimited |
Display Technology | TN-IPS |
Pixel Size Y | 0.17 |
Pixel Size X | 0.17 |
Operating Temperature | -20 ... +70 °C |
Controller | EA |
Active | Y |
Fonts | ASCII and Unicode |
Diagonal Size | 10.1 |
Touch Type | none |
Pixel X | 1280 |
Pixel Y | 800 |
Analogue Inputs | 4 |
Inputs/Outputs | 16 |
High Brightness | Y |
