3.5" EA uniTFTs035-ATC multifunctional IPS Graphic Display + PCAP touch

EA uniTFTs035-ATC embedded Smart 3.5" IPS TFT colour object programmable display with 480x320 resolution, high brightness LED backlight and PCAP touch-screen. Manufactured by DISPLAY VISIONS. The uniTFTs displays are easy programmable with the free uniTFTDesigner software. Simply connect the onboard USB port and download your project including pictures, fonts, I/O settings, calculations and script into the display. In addition to the USB interface communication via RS-232 serial, I²C and SPI interface is possible. Fitted with 40 pin ZIF connector (bottom contact) for easy connection to the breakout boards. See EA DEMOPACK for demo applications or EA 94998-CONNI, EA 94998-RELAY, EA 94998-POWER for PCB only.

• AACS (all angle color stability) and IPS-display for unlimited viewing angle
• High bright LED backlight over 1000cd/m²
• Object-oriented screen layout
• Alpha-blending
• ASCII and Unicode Fonts
• Serial interfaces: USB, RS232, SPI, I²CAnimate and move objects
• 8 digital I/Os for connection to sensors and actuators. (expandable to 136)
• 4 analog inputs with 12 bit resolution
• Time (RTC), battery-buffered

The EA uniTFTs015-ATC provides 4 serial interfaces, including RS232, SPI, I²C and USB. In addition to the USB interface, the other interfaces can change their behaviour.

They can either be used to connect to an external host, i.e. to a higher-level controller, or used as a master interface and connect to sensors, scales, drives. Both in slave or master can receive commands.

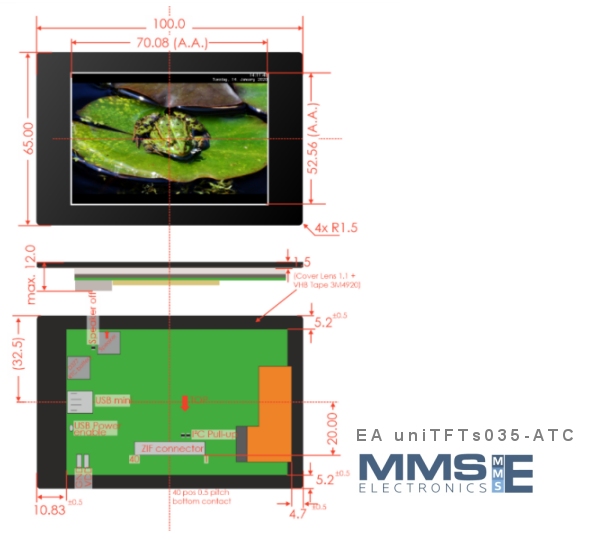

Dimensions EA uniTFTs035-ATC
