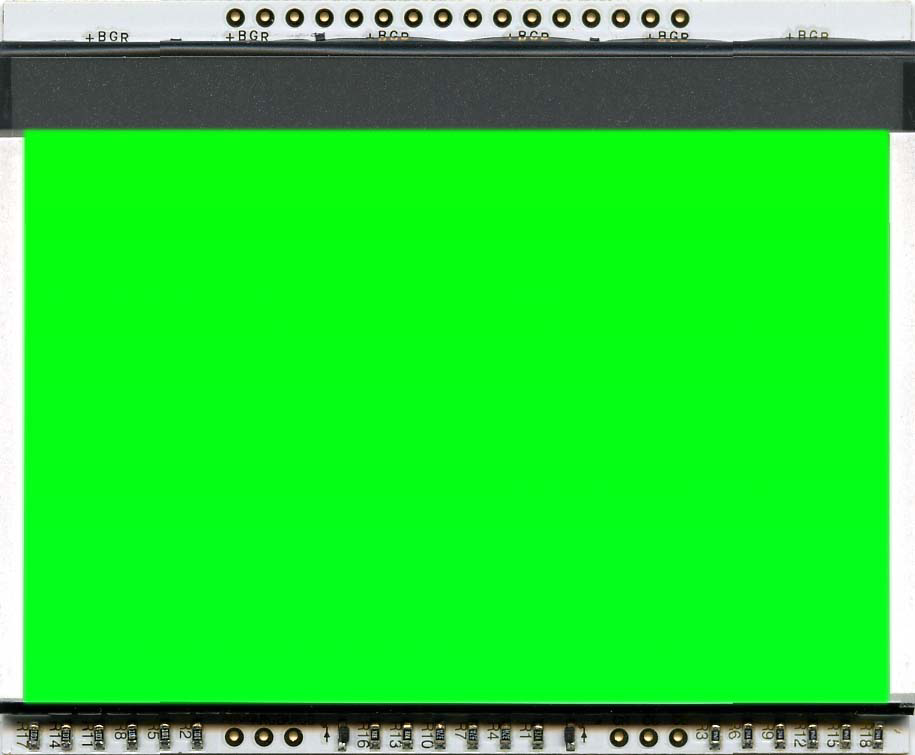

EA LED78X64-E LED backlit unit PURE GREEN for EA DOGXL160-
£23.60
SKU:
EA LED78X64-E
14 left in UK stock! More available (for delivery ~1 week). Buy now or request a quote for larger orders.
EA LED78X64-E LED backlight for use with the EA DOGXL160-7 display; colour: PURE GREEN. Supply voltage 3.3V and higher via an ext. current limit resistor.
| Total Width | 78 |
| Total Height | 45.6 |
| Thickness | 4.2 |
| Status | In Production |
| Current Backlight Off (mA) | 0 |
| Current Backlight On (mA) | 60 |
| Operating Temperature | -20 ... +70 °C |
| Diagonal Size | 3.3 |
| Colour | GREEN |
