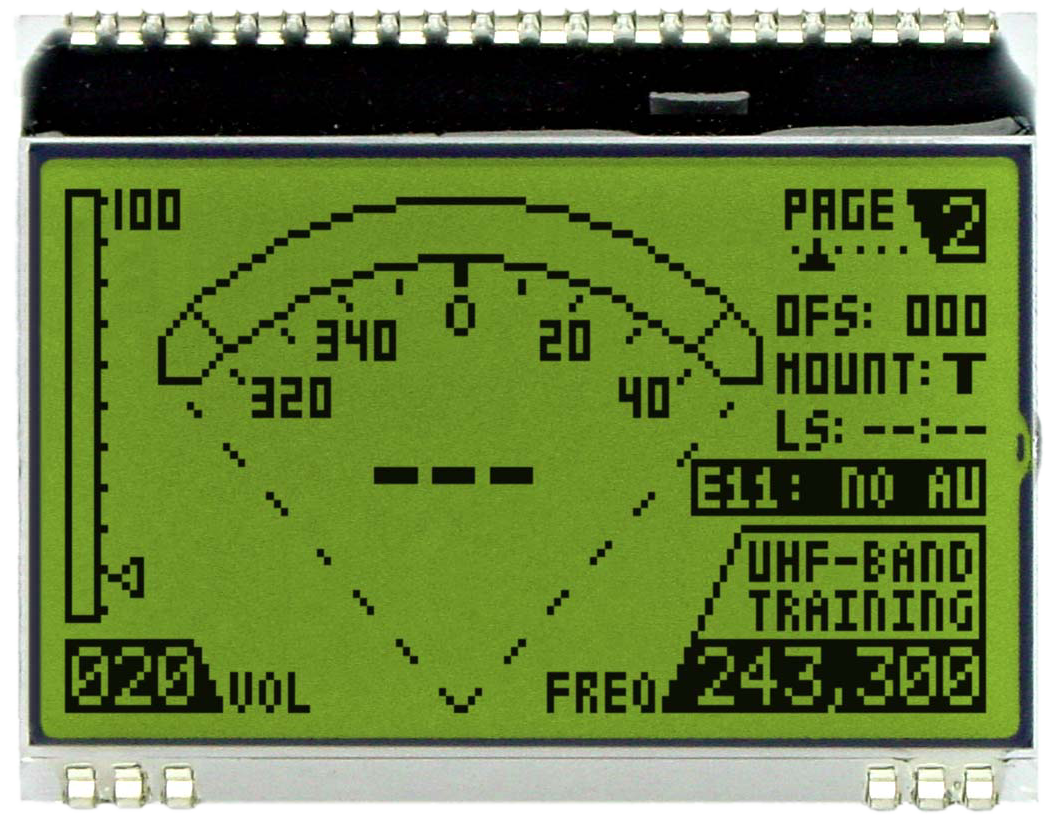

128x64 DOG Graphic Display EA DOGM128L-6
£17.86
SKU:
EA DOGM128L-6
In Stock
EA DOGM128L-6 DOG series graphic display with 128x64 dots. Extremely flat COG display in STN yellow/green. 3.3 V single supply. Pins for direct mounting (2.54 mm pitch). Controller ST7565, SPI interface. Also available in various colours and designs. Reflective version, no backlight available.
Click | Total Width | 55 |
| Total Height | 46 |
| View area width | 51 |
| View area height | 31 |
| Thickness | 2 |
| Status | In Production |
| Interface | SPI |
| Backlight Colour | not defined |
| Background Colour | yellow/green |
| Current Backlight Off (mA) | 0.27 |
| View Angle | 6:00 / bottom view |
| Display Technology | STN Y/G |
| Pixel Size Y | 0.42 |
| Pixel Size X | 0.36 |
| Operating Temperature | -20 ... +70 °C |
| Controller | ST7565 |
| Active | 1 |
| Fonts | 0 |
| Diagonal Size | 2.3 |
| Touch Type | available |
| Pixel X | 64 |
| Pixel Y | 128 |
