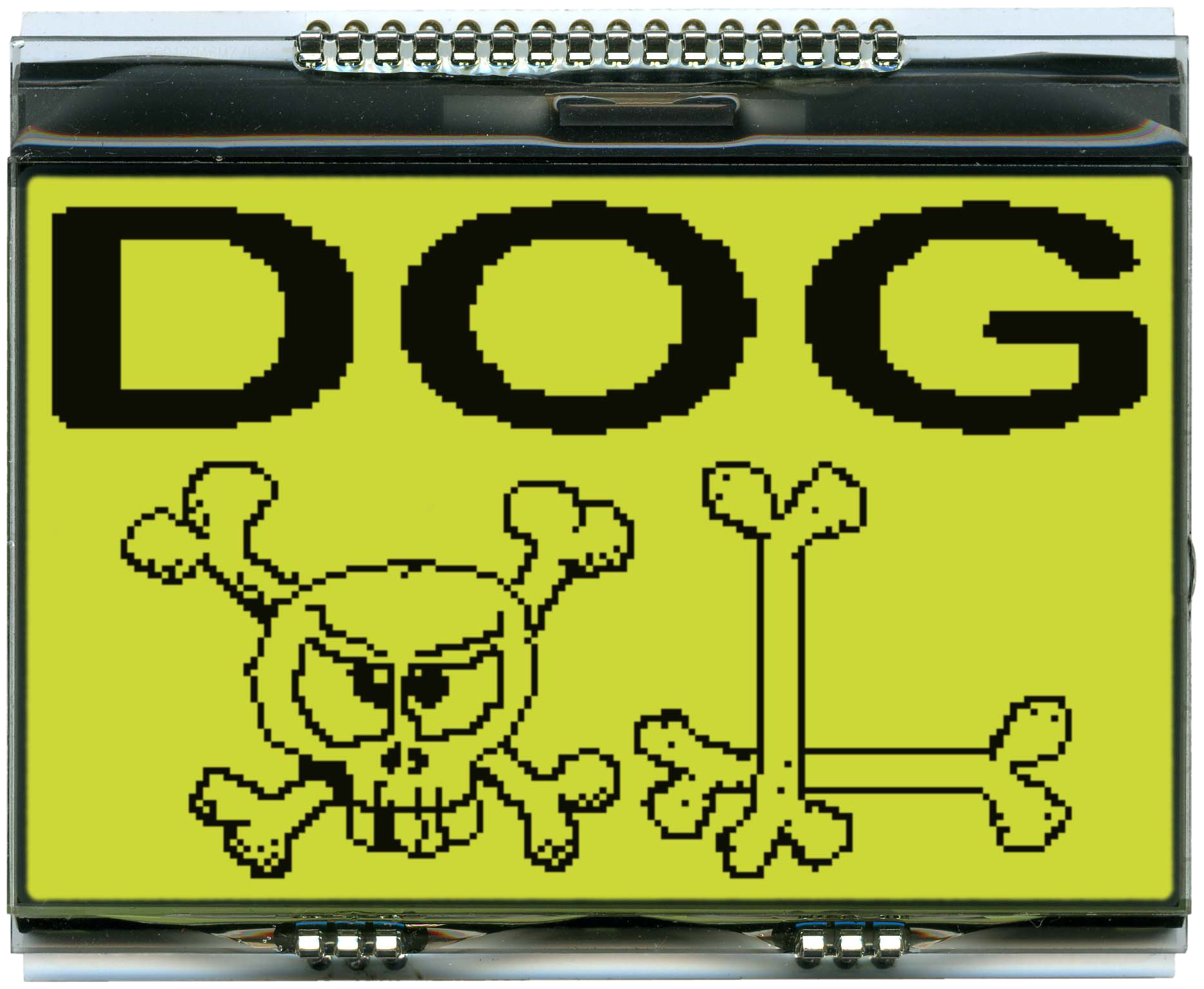

160x104 DOG Graphic Display EA DOGXL160E-7

160x104 DOG Graphic Display EA DOGXL160E-7

£35.25
SKU: EA DOGXL160E-7
21 left in stock
For quantity 10+

EA DOGXL160E-7 DOG series graphic display with 160x104 dots. Extremely flat COG display in STN yellow/green. 3.3 V single supply. Pins for direct mounting (2.54 mm pitch). Controller UC1610 SPI and I²C interface. Also available in various colours and designs. Backlight needs to be ordered separately. We recommend yellow/green backlight for this module.

Download the free of charge DOG-Simulator and experiment with all combinations of display technology and LED backlight colours. Show the DOG displays on your desktop without any programming or order the EA 9780-4USB test board to power your display.

Click HERE for more details on the DOG-simulator.



Click here and here to download the datasheets for this product.

Total Width 78
Total Height 64
View area width 72
View area height 45.6
Thickness 2.8
Status In Production
Interface SPI
I2C
Backlight Colour not defined
Background Colour yellow/green
Current Backlight Off (mA) 0.7
View Angle 6:00 / bottom view
Display Technology STN Y/G
Pixel Size Y 0.397
Pixel Size X 0.418
Operating Temperature -20 ... +70 °C
Controller UC1610
Active 1
Fonts 0
Diagonal Size 3.3
Touch Type available
Pixel X 104
Pixel Y 160
