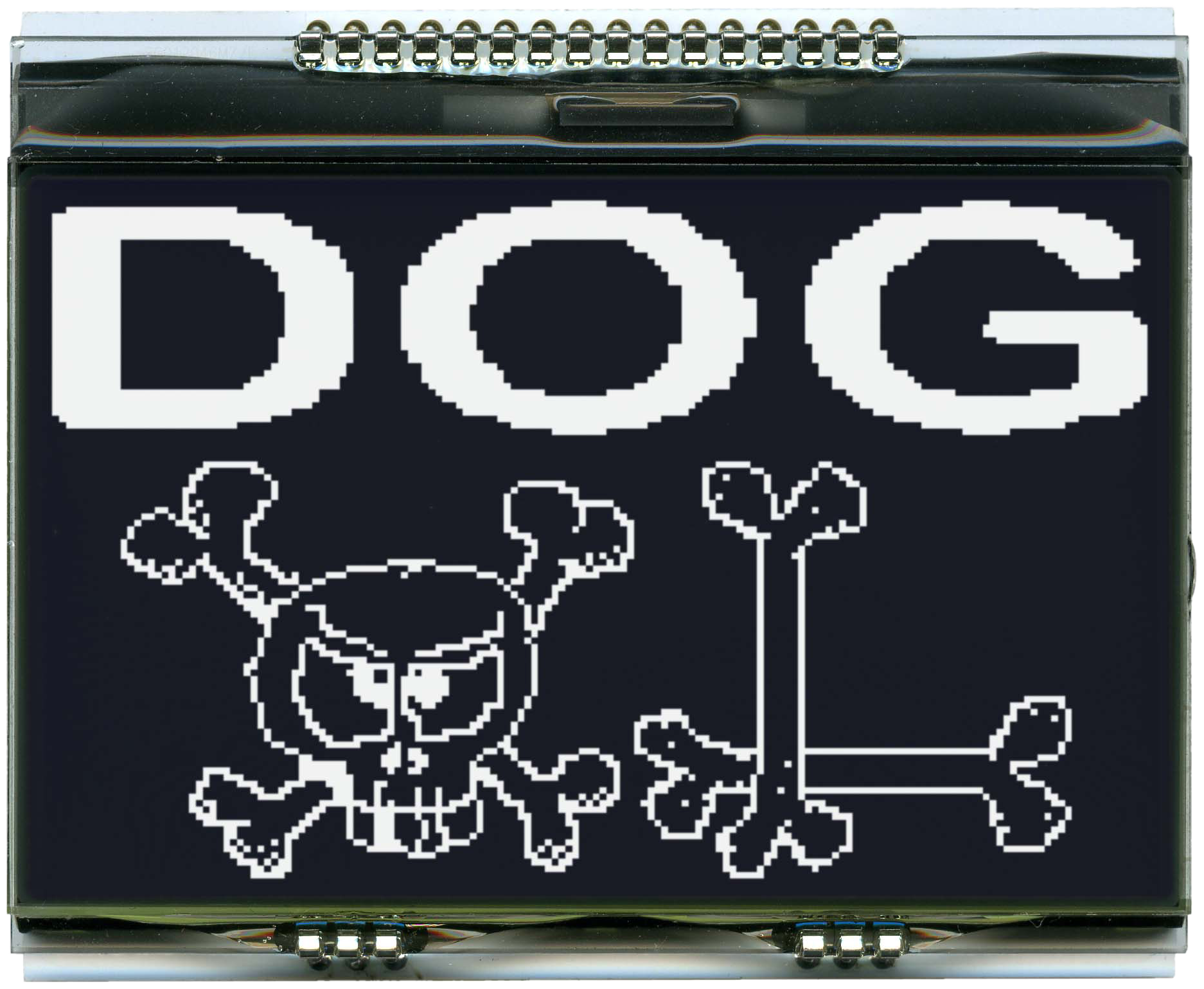

160x104 DOG Graphic Display EA DOGXL160S-7
EA DOGXL160S-7 DOG series graphic display with 160x104 dots. Extremely flat COG display in FSTN negative. 3.3 V single supply. Pins for direct mounting (2.54 mm pitch).Controller UC1610 SPI and I²C interface. Also available in various colours and designs. Backlight needs to be ordered separately. A backlight is required with the EA DOGXL160S-7.

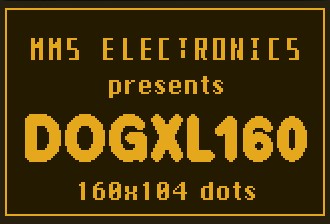

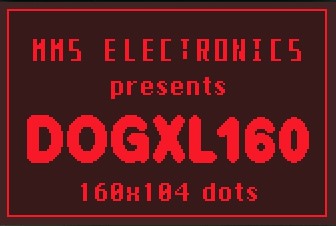

Here in Red is EA DOGXL160S-7 display with a Red LED backlight EA LED78X64-R to present a classic retro style display and also in Amber EA DOGXL160S-7 display with Amber LED backlight EA LED78x64-A. White or Green B/L is also a possibility.
Download the free of charge DOG-Simulator and experiment with all combinations of display technology and LED backlight colours. Show the DOG displays on your desktop without any programming or order the EA 9780-4USB test board to power your display without the need to write any code.
Click HERE for more details on the DOG-simulator.
Click | Total Width | 78 |
| Total Height | 64 |
| View area width | 72 |
| View area height | 45.6 |
| Thickness | 2.8 |
| Status | In Production |
| Interface |
SPI I2C |
| Backlight Colour | not defined |
| Background Colour | black |
| Current Backlight Off (mA) | 0.7 |
| View Angle | 6:00 / bottom view |
| Display Technology | FSTN |
| Pixel Size Y | 0.397 |
| Pixel Size X | 0.418 |
| Operating Temperature | -20 ... +70 °C |
| Controller | UC1610 |
| Active | 1 |
| Fonts | 0 |
| Diagonal Size | 3.3 |
| Touch Type | available |
| Pixel X | 104 |
| Pixel Y | 160 |
